Point clouds are essential in 3D modeling, robotics, autonomous driving, and many other fields. They represent spatial data as a collection of points in three-dimensional space, typically obtained from LiDAR (Light Detection and Ranging) sensors, depth cameras, or photogrammetry techniques. However, working with point clouds presents challenges, including noise, large data sizes, and irregular structures. AI-based methods, particularly deep learning, have emerged as powerful tools to process and analyze point clouds effectively.
This post introduces the fundamentals of point cloud processing and how AI enhances this field.
Challenges in Processing Point Clouds
A point cloud is a set of data points in 3D space, often captured using LiDAR (Light Detection and Ranging) sensors or depth cameras. These point clouds provide a raw representation of the environment but require advanced processing to extract meaningful information.
Key challenges in point cloud processing include:

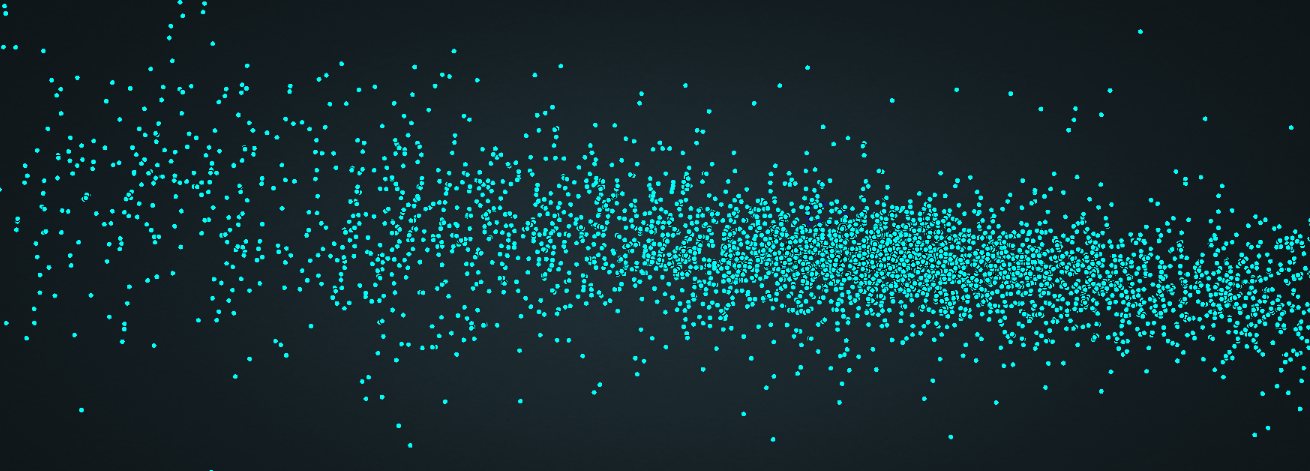

Irregular Structure: Unlike 2D images, point clouds are unstructured and unordered.
Sparse and Noisy Data: Real-world captures may have missing data points and noise.
High Dimensionality: Point clouds can contain millions of points, making computation expensive.
AI Techniques for Point Cloud Processing
AI and deep learning have enabled significant advancements in point cloud processing. Here are some key techniques:
1. Point-Based Networks
Point-based networks process raw point clouds directly without converting them into structured data. The most well-known architecture is PointNet.
Processes each point independently using multi-layer perceptrons (MLPs).
Uses max-pooling to create a global feature representation.
Works well for classification and segmentation tasks.
However, PointNet does not capture local relationships between points, which led to the development of PointNet++, an extension that incorporates hierarchical feature learning.
2. Voxel-Based Approaches

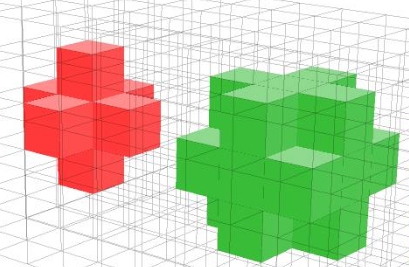

A common method to handle point clouds is to convert them into a voxel grid (3D pixels). Standard CNNs can then process the voxel representation.
Advantage: Allows CNNs to be applied directly.
Disadvantage: High memory consumption and loss of detail due to voxelization.
Examples of voxel-based models include VoxelNet and SECOND (used in autonomous driving perception).
3. Graph-Based Networks
Graph-based approaches, such as DGCNN (Dynamic Graph CNN), treat point clouds as graphs, where each point connects to its nearest neighbors. These networks leverage graph convolutional operations to capture spatial relationships effectively.
4. Transformer Models for Point Clouds
Recent advancements include Point Transformer, which applies attention mechanisms to dynamically focus on important parts of a point cloud. Transformers have shown great potential in 3D object detection and segmentation.
AI-Powered Point Cloud Processing
Traditional point cloud processing relied on rule-based methods, but AI—particularly deep learning—has revolutionized the field. Here are some common AI-driven tasks:

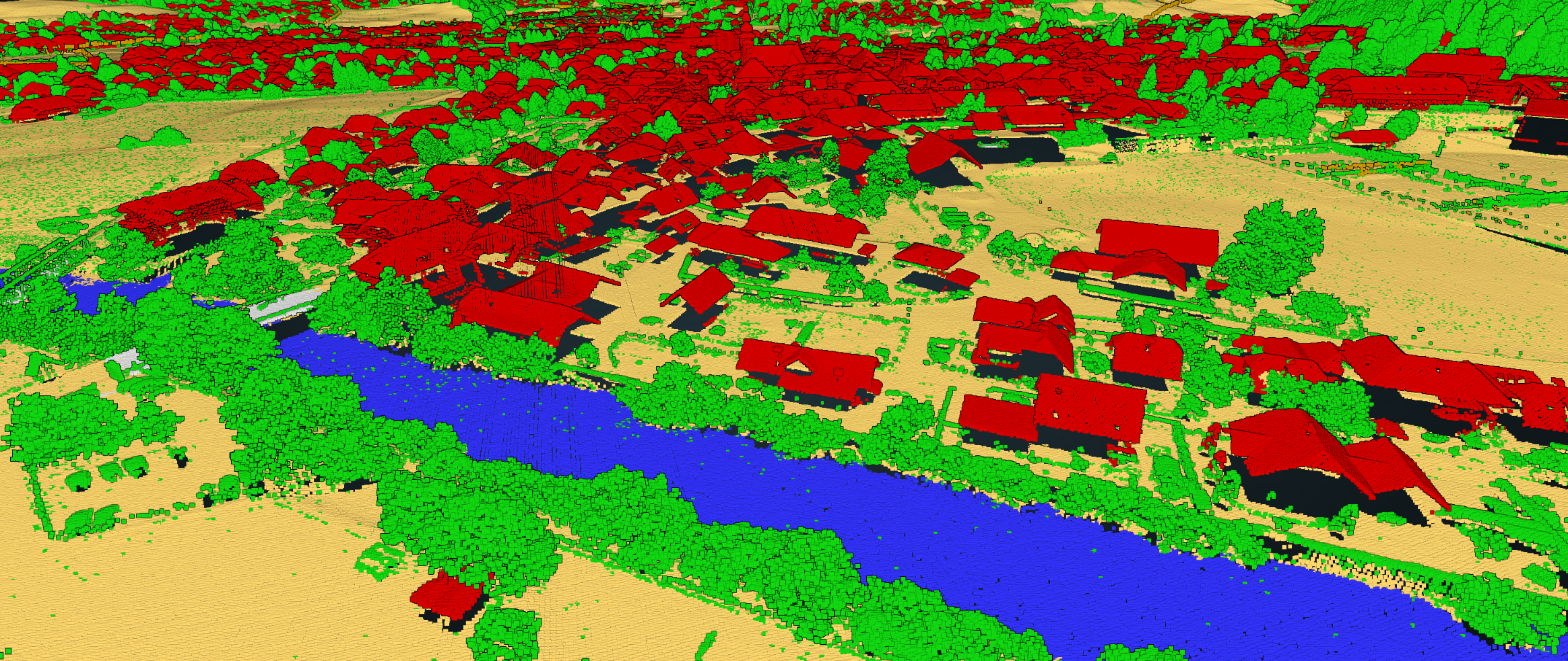

1. Point Cloud Classification
Classification involves assigning labels to individual points or entire objects. This is crucial in applications like autonomous driving, where distinguishing between pedestrians, vehicles, and roads is essential.
Deep learning models such as PointNet, PointNet++, and DGCNN have proven effective for point-wise classification by learning spatial features directly from raw point clouds.
Flai is an AI-powered platform that simplifies point cloud processing by offering automated classification and segmentation tools. Instead of building custom AI models from scratch, Flai allows users to leverage pre-trained models and intuitive workflows, making it accessible for industries like construction, agriculture, and urban planning. |
2. Point Cloud Segmentation
Segmentation extends classification by grouping neighboring points with the same label, helping in object detection and scene understanding. AI-based segmentation is widely used in robotics and smart city applications.
3. Point Cloud Registration
Registration aligns multiple point clouds into a single coordinate system, essential for 3D reconstruction and SLAM (Simultaneous Localization and Mapping). AI-driven methods improve accuracy and robustness in dynamic environments.
4. Object Detection & Recognition
Beyond classifying individual points, AI models can detect and recognize objects, enabling applications like warehouse automation and security monitoring.
Conclusion
AI-powered point cloud processing is transforming industries by making 3D data analysis more accurate and efficient. Whether it's classification, segmentation, or object detection, deep learning methods provide powerful solutions to previously complex problems.
With platforms like Flai, businesses can leverage AI without deep technical expertise, accelerating adoption in fields like smart cities, construction, and autonomous systems.
